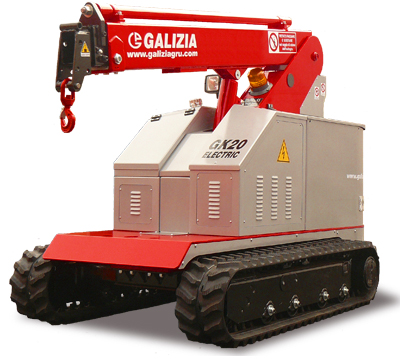

GK20 - 2 t - electric on tracks radio

2 t - electric on tracks radio
Top

Technical issues

Max capacity 2.000 kg (closed undercarriage
Chassis dimensions (L x W x H) tracks closed 2.245 mm x 820 mm x 1.705 mm
tracks open 2.245 mm x 1.220 mm x 1.705 mm
Weight (about) 2.000 kg
Telescopic boom Box boom, 1 hydraulic section, 1 manual section
Tracked undercarriage Rubber tracks
Steering 2 motors with counter rotation driven by AC electronic control
Drive system Electric motors controlled by AC electronic controllers, about 2 km/h
Brakes Electromagnetic brakes on motors
Drive Motors N°2 Permanent magnet brushless AC motors
4,2 kW x 2 (4,2 kW right axle + 4,2 kW left axle)
Batteries 48V – 400 Ah
Standard equipment Radio remote control, proportional hydraulic distributor radio remote-controlled, digital safe load indicator with display, shut-off valve, reversing alarm, work light, flash-light, emergency button.
Optional equipment Searcher hook, jib, full winch hydraulic system, low marking tyres, radio control, other on demand.
