GF420 - 42 t - 2 mot fr drive 4 wheels
Technical issues
| Max capacity | 42.000 kg |
| Chassis dimensions (L x W x H) | 4600 ( + 1000) mm x 2090 mm x 2200 mm |
| Steering radius | 4100 mm |
| Weight (about) | Total 31.000 kg - without counterweight 21.500 kg |
| Telescopic boom | Full hydraulic, 4 section, box boom |
| Steering | Rear hydraulic 180° |
| Tyres | 4 solid rear 28 x 12.5 - 15 4 solid front 355/50 - 20 |
| Drive system | Front with 2 motors on front axles with counter rotation controlled by High performance electronic controllers. |
| Brakes | On front and rear axles |
| Electrical option | Standard |
| Drive Motors | 12 kW x 2 ( 12 kW right front axle + 12 kW left front axle) |
| Power surce | 96 V 1395 Ah |
| Standard equipment | Digital safe load indicator with display, shut-off valve, proportional distributor joystick-controlled, reversing alarm, seat sensor and seatbelt, work light, emergency button. |
| Optional equipment | Searcher hook, hydraulic jib, fill winch system, auto-levelling telehandler forks, low marking tyres, radio remote control, other on demand. |
Download and print .pdf file
TopImages

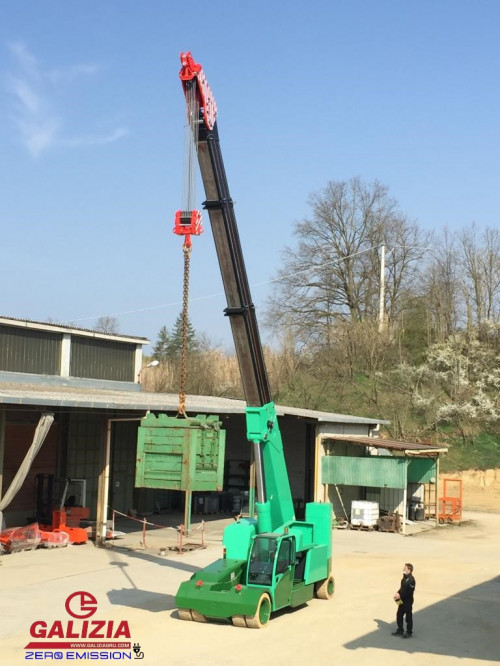

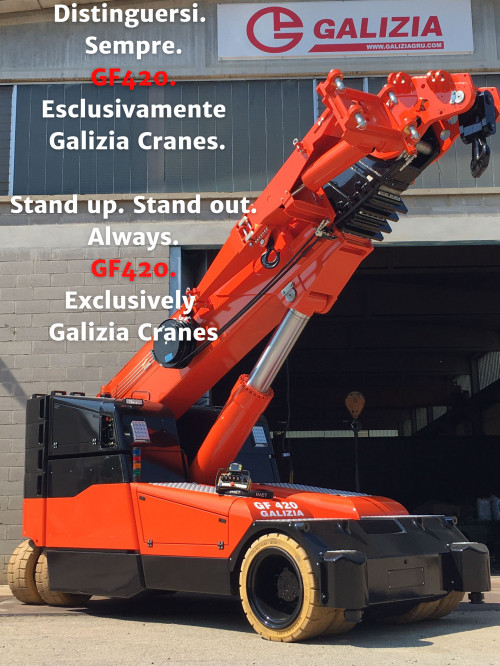

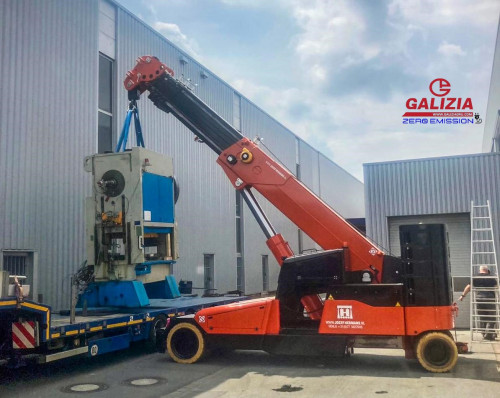

GALIZIA GF420
GALIZIA GF420
GALIZIA GF420

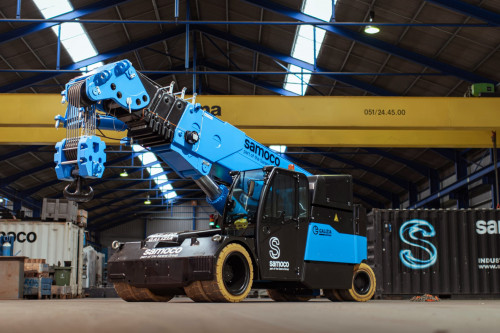

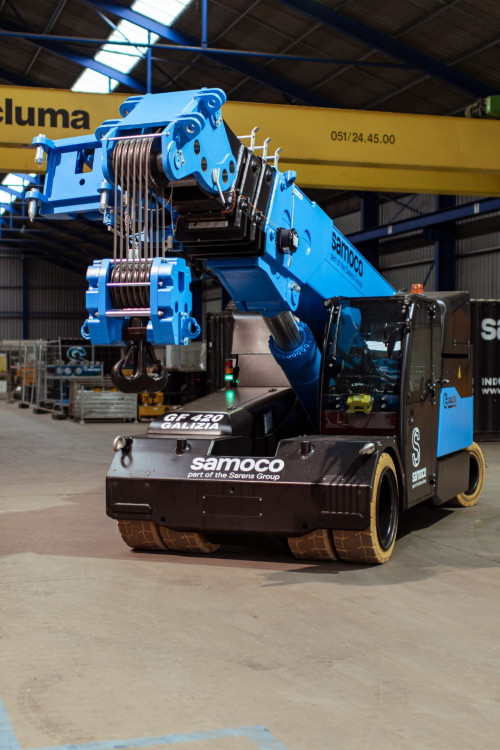

GF420 Samoco
