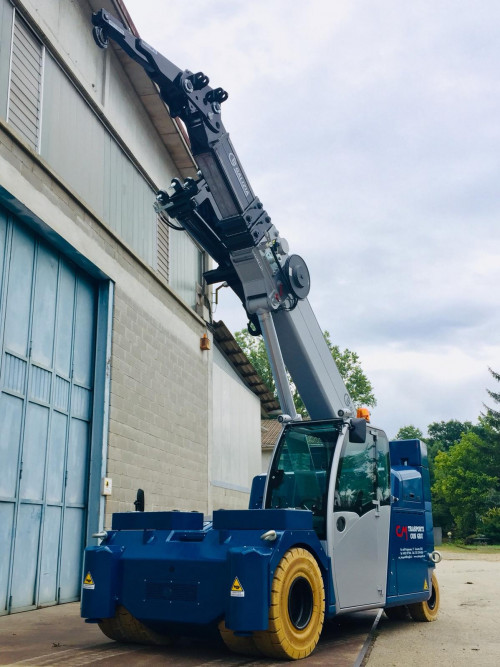

GF180 - 18 t - 2 mot fr drive 4 wheels

18 t - 2 mot fr drive 4 wheels
Top

Technical issues

Max capacity 18 t
Chassis dimensions (L x W x H) 3990 mm x 1850 mm x 1960 mm
Steering radius 3525 mm
Weight (about) 18.000 kg
Telescopic boom Full hydraulic, 4 sections, box boom
Steering Rear hydraulic steering (double wheels)
Tyres 4 solid front 300-15 4 solid rear 23x9-10
Drive system 2 electic motors AC80V 14KW
2 reducers 1 : 27.7
max speed on level ground 8 Km/h
Brakes
Electrical option
Drive Motors
Power surce
Standard equipment
Optional equipment
